Kubernetes/K8S基础使用方法总结【二十四】——Confluence的安装和使用

Confluence is your remote-friendly team workspace where knowledge  and collaboration meet.

Install confluence by helm

We can refer to the official helm chart to install confluence. Click here for more information.

Download the chart

1. Add repo to your helm repo by the under command:

helm repo add stevehipwell https://stevehipwell.github.io/helm-charts/

2. You can download the chart by the command:

helm install my-confluence-server stevehipwell/confluence-server --version 3.3.2

Modify the chart configuration file according to your actual situation

1.For the file values.yaml

General,we need to change the two parts of ingress and persistence. For example:

ingress:
  enabled: true
  annotations:
    kubernetes.io/tls-acme: “true”
    kubernetes.io/ingress.class: nginx
  path: /
  hosts:
    – atlassian.db.bciadopt.com
  tls:
  – hosts:
    – atlassian.db.bciadopt.com
    secretName: devops-tls

persistence:
  enabled: true
  annotations: {}
  accessMode: ReadWriteOnce
  storageClass: “aws-efs”
  size: 9Gi

In order to obtain the license of Confluence, we also need to configure environment variables.

env:
  – name: JAVA_OPTS
    value: “-javaagent:/var/atlassian/application-data/confluence/atlassian-agent-v1.2.3/atlassian-agent.jar

2.For the file /templates/deployment.yaml

Edit the initContainers section refer to following command. Get license, click here for more information.

      initContainers:
        – name: busybox-latest
          image: busybox:latest
          imagePullPolicy: IfNotPresent
          command: [“sh”]
          args: [“-c”, “wget -O /var/atlassian/application-data/confluence/atlassian-agent-v1.2.3.tar.gz https://gitee.com/pengzhile/atlassian-agent/attach_files/283101/download/atlassian-agent-v1.2.3.tar.gz; cd /var/atlassian/application-data/confluence/; tar -xvf /var/atlassian/application-data/confluence/atlassian-agent-v1.2.3.tar.gz;”]
          volumeMounts:
            – mountPath: /var/atlassian/application-data/confluence
              name: {{ include “confluence-server.pvcname” . }}

Install chart

Install the chart by the local chart file, refer to the following command. Wait about 2 minutes to visit the confluence homepage.

helm install atlassian -n devops -f values-production.yaml ./

tips

If you want to download the complete file, please click to here.

Other confluence installation methods

If you don’t want to make complicated changes, click here to install directly.

Installing the Chart

1.Before installing the chart you will need to add the stevehipwell repo to Helm.

git clone https://github.com/zhangqiongjie/qiongjiebiji.git -b helm-chart2.

2.Unzip the gzp format file and switch to the unzipped directory。

tar -xvf confluence-server-3.3.1.tgz && cd confluence-server

3.After you’ve installed the repo you can install the chart.

helm upgrade --install --namespace default --values ./values-production.yaml my-release ./

Obtain the license of Confluence

Reference the below command(related value need be changed by your situation), you have to into your pod generated by the deployment before you execute below command.

java -jar atlassian-agent.jar -p conf -m example@example.com -n my_name -o https://example.com -s ABCD-1234-EFGH-5678

Confluence configure LDAP

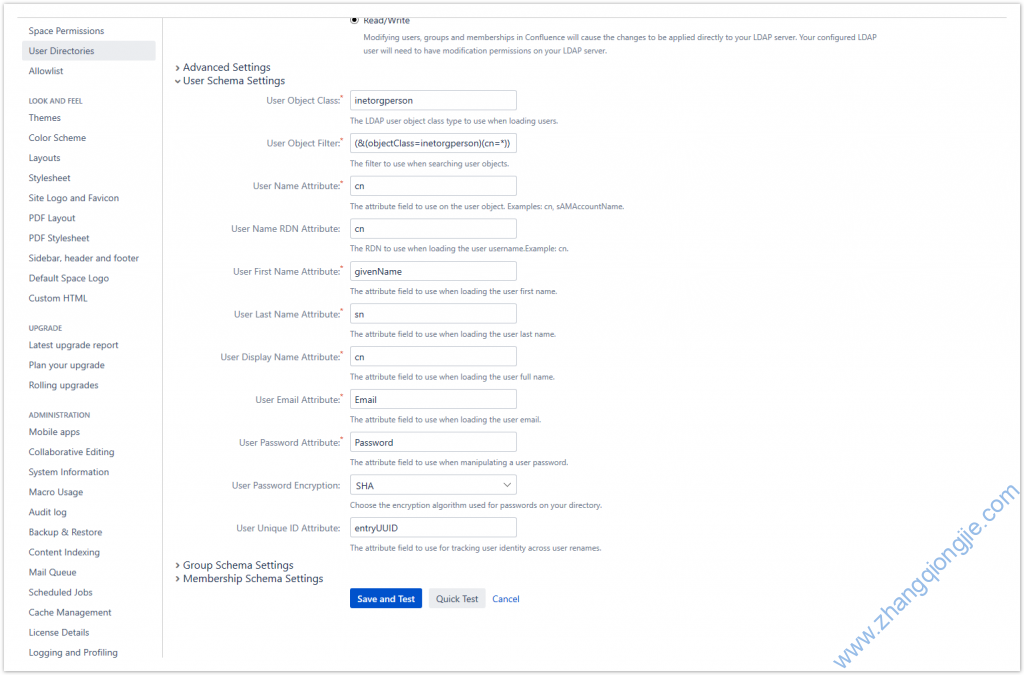

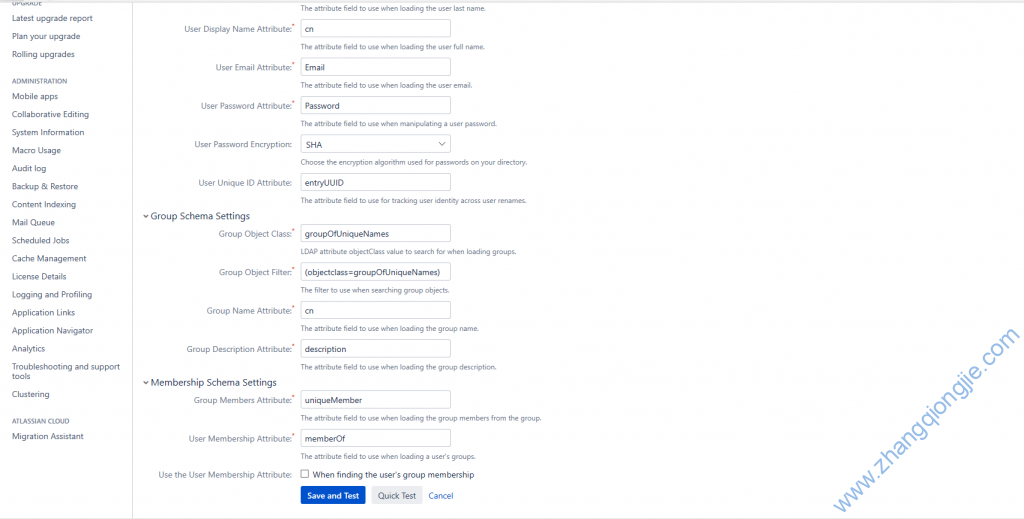

After logging in to the confluence homepage, find User management–>User Directories–>Add Directory. The configuration refer to below screenshot.
